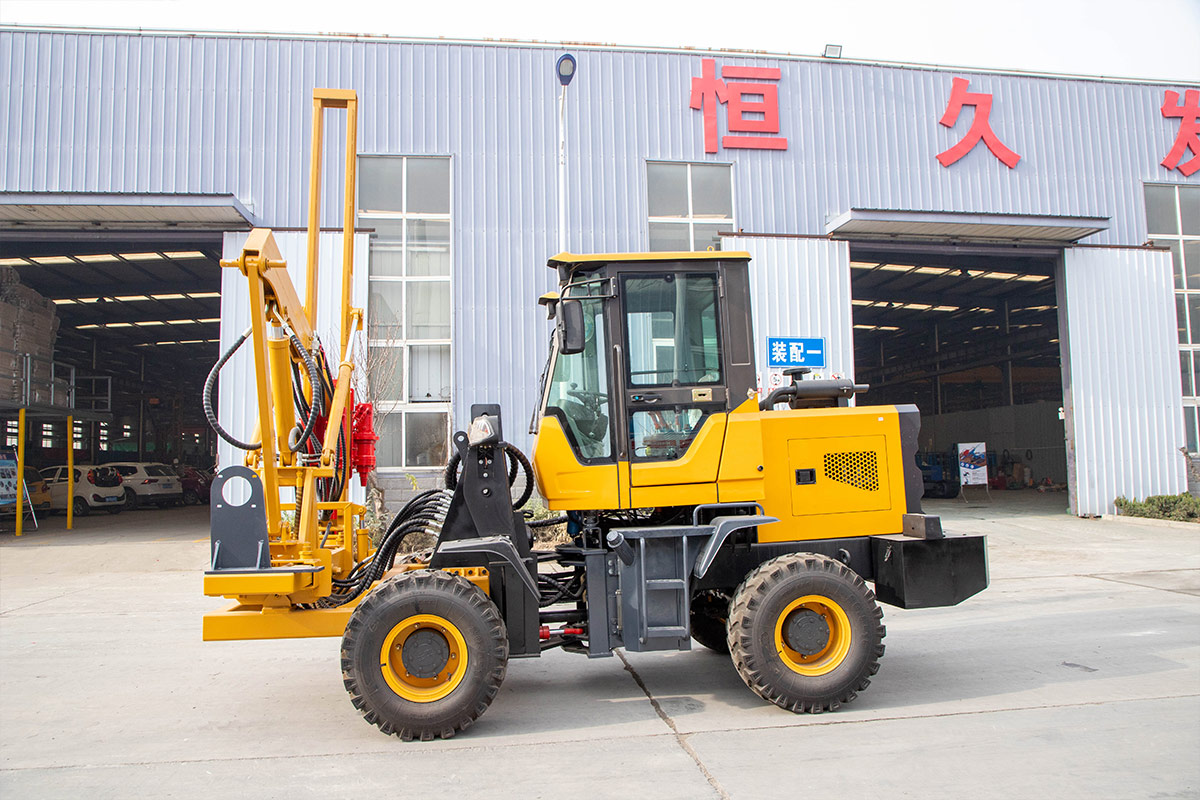

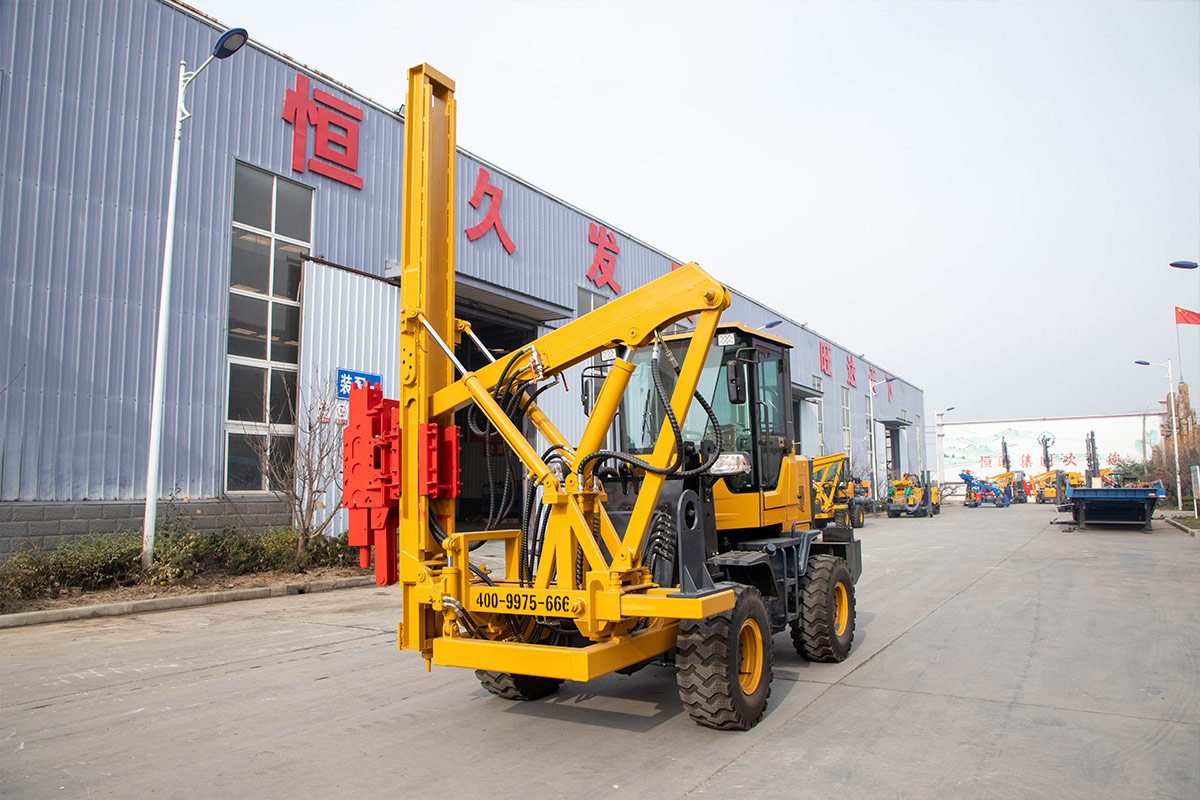

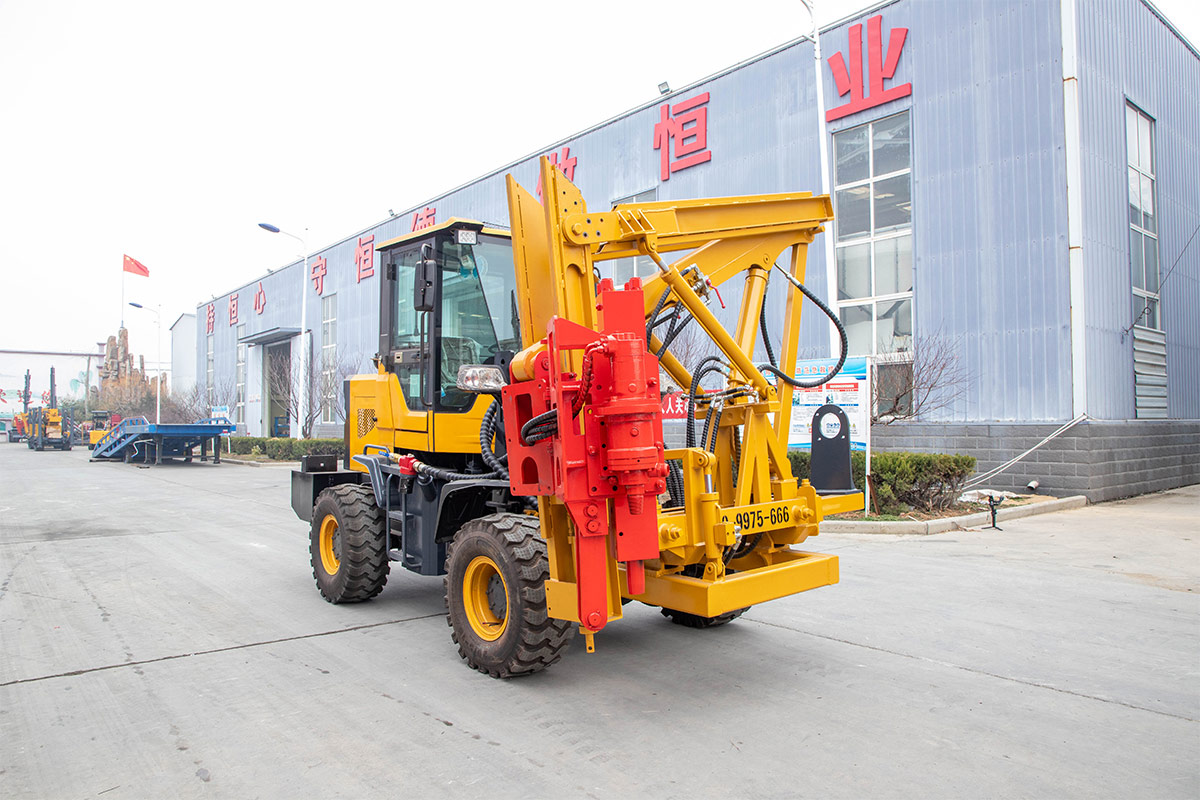

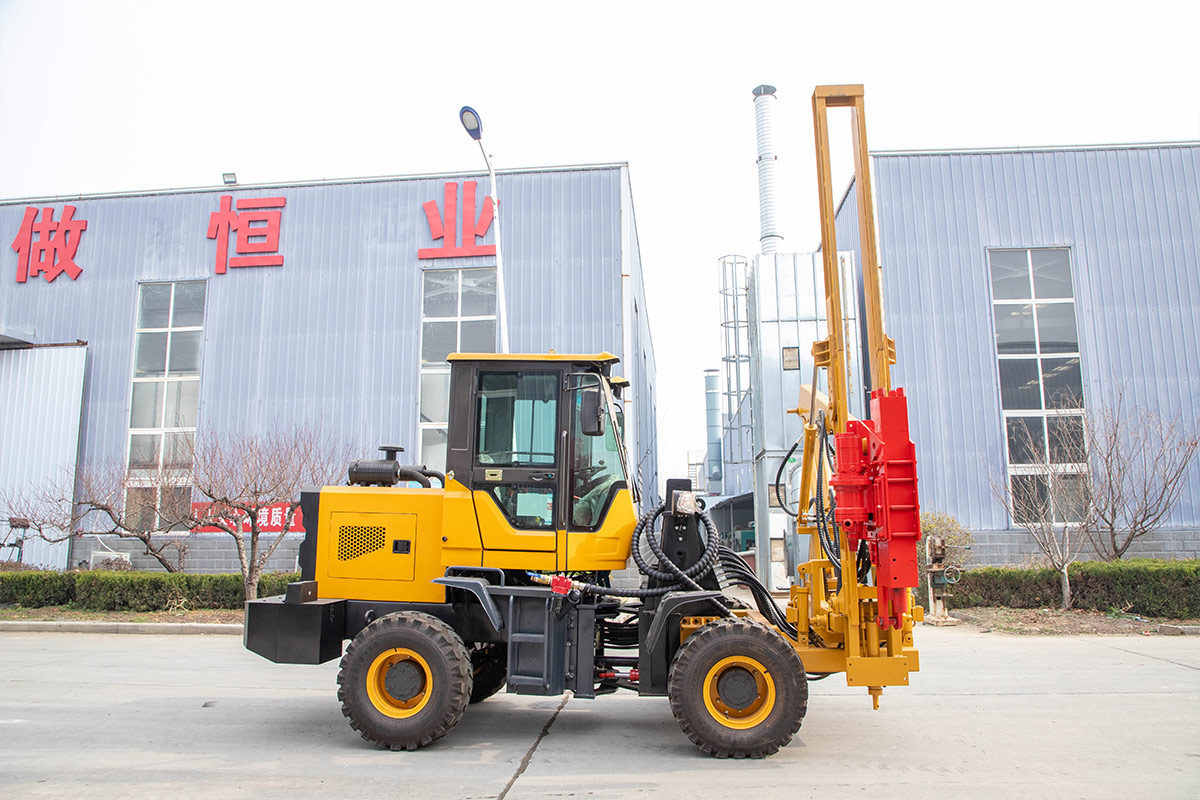

The loading guardrail pile driver integrates driving, pulling and drilling, and is mainly used for highway guardrail piles, photovoltaic panel installation, etc.
Main feature:
1. Well-known brand diesel engines ensure power and fuel efficiency.
2. The strict assembly of high-quality hydraulic components ensures the stability and durability of the hydraulic system.
3. The welding process is rigorous, and the overall frame is welded to relieve stress and reduce deformation.
Parameter:
| Model | HWH930ZD |
| Working weight | 4100KG |
| Engine brand | YUNNEI |
| Engine Power | 55KW |

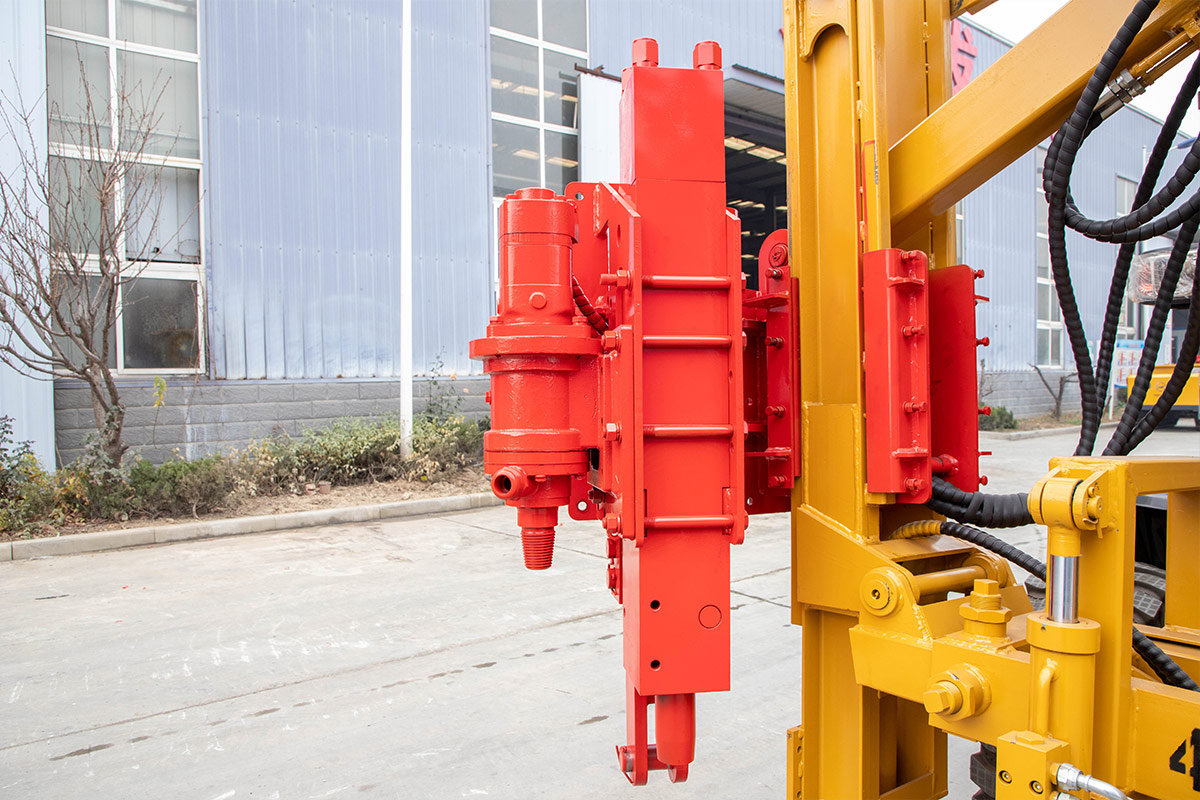

| Power Head | #75 |
| Power Head Weight | 140Kg |
| Overall Dimension | 4970*2700*2700 |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
